Product Description

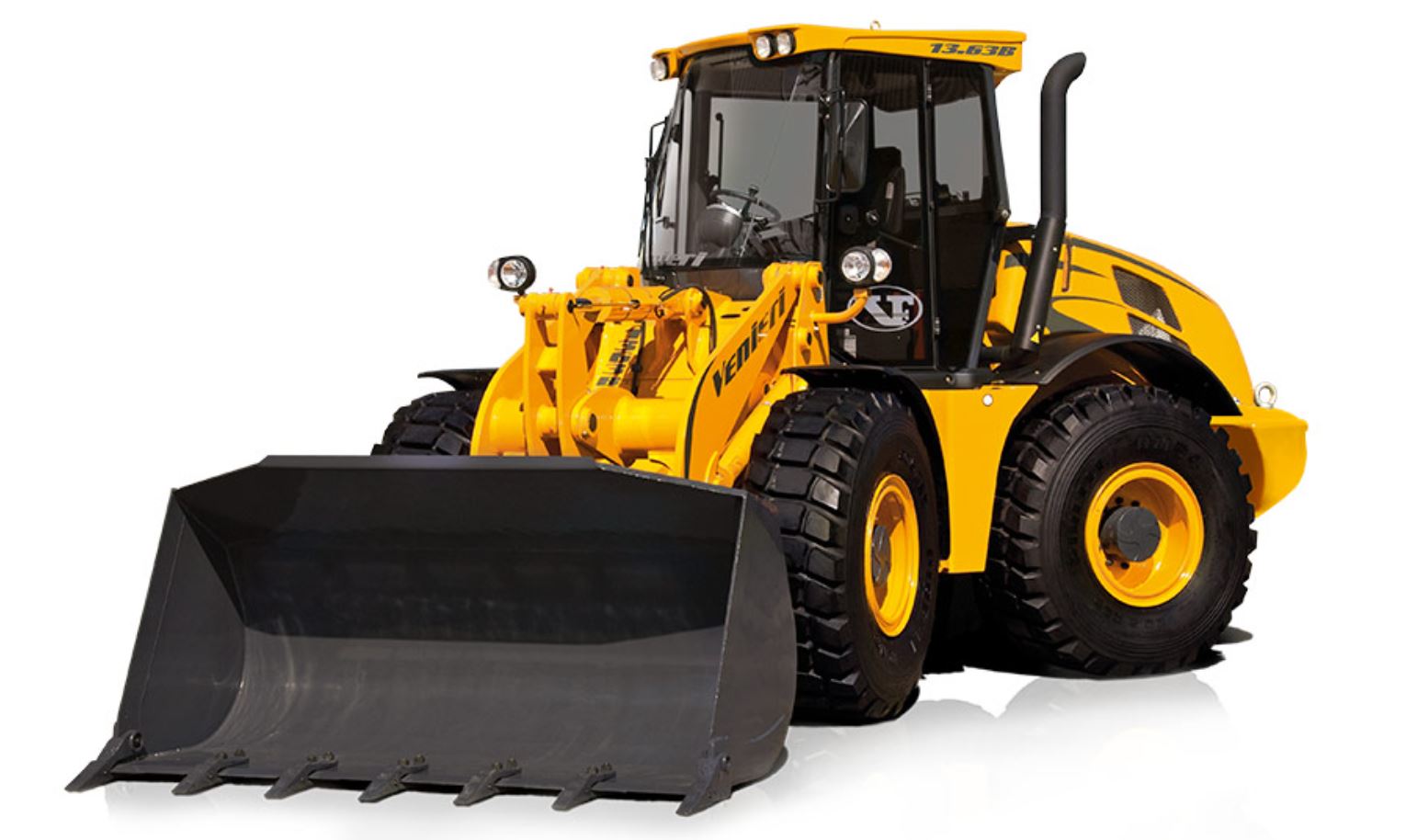

Venieri 13.63C?Wheel Loader

One of the largest and most powerful?wheel loaders in its class, the Venieri 13.63C is equipped with a 184?HP DEUTZ?diesel engine and 4K linkage system, allowing for over 26,000 lbs of breakout force so you can handle anything the job throws at you.?The Level II cabin gives the operator a 360° view of their surroundings for maximum vision and safety on the jobsite!

Find the Venieri 13.63C Wheel Loader at Kooy Brothers Equipment Ltd. located at 1919 Wilson Avenue in Toronto Ontario.

?for more information.

*Price is subject to change without notice. Errors and omissions exempted.

Features

Venieri 13.63C?Wheel Loader Features Include:

• 4K LINKAGE?-?New completely redesigned linkage to the latest state of the art for maximum breakout force.
• BREATHTAKING VIEW - The new ROPS/FOPS Level II cabin design guarantee a 360° visibility, for maximum workplace control and highest level of safety.
• SAFETY IS PRIORITY - The negative parking brake is integrated into the front axle for maximum safety in all operating situations.
• CLIMATE CONTROL?- The brand new ventilation system guarantees operator comfort. You can choose between automatic climate control or the air conditioner, thus obtaining the perfect temperature in the cabin.
• QUIET CABIN - By using new sound absorbing materials and special “anti vibration” rubber shocks, the noise inside cabin is radically reduced guaranteeing maximum comfort to the operator.
• TOTAL STABILITY - Oscillating rear axle fixed to the frame with maintenance-free supports.
• NEW DEUTZ TIER 4i ENGINE - The new DUETZ?engine complies with the latest emission standards and delivers high torque at low rpm.
• ALWAYS CLEAN AIR - New air cleaner system?has?two stage filtration, highly efficient?pre-cleaner plus primary filters and safety filters. Venieri is always?improving engine protection.
• COOLING FAN?- The new electrically controlled dual speed cooling fan adjusts?the rotation speed according to working conditions, reducing fuel consumption and noise.
• BUILT FOR POWER, DESIGNED FOR AGILITY - The special design of the counter-weight guarantees perfect maneuverability, maximum drive angle and protects the rear light system.

Specifications

Venieri 13.63C Wheel Loader Specifications:

• Max Power -?184?HP
• Max Torque - 553 ft-lbs
• Battery - 12 Volt
• Alternator - 95A
• Maximum Travel Speed -?25?km/hr
• Service Brake -?Hydraulic multi-disc oil bath on each wheel
• Parking Brake - Negative hydraulic on rear, electrically activated
• Max Hydraulic Flow -?51.51 gpm
• Lifting time (full) -?5 sec
• Lowering time (empty) -? 1.7?sec
• Unloading Time -?4.1?sec
• Total Cycle Time -?10.8?sec
• Tipping Capacity -?23,810 lbs

• Breakout Force - 6,400 kg
• Total Steering Angle - 80°

• Noise Level (inside cabin) -?68?dB(A)
• Noise Level (outside cabin) - 101?dB(A)
• Standard Operating Weight - 30,203 lbs

?
